PTFE ( Teflon ) Products:
PTFE (Polytetrafluoroethylene) Sheets are one of the most versatile engineering plastics, widely known for their exceptional chemical resistance, non-stick surface, and high-temperature stability. Commonly recognized by the trade name Teflon®, PTFE sheets are used across diverse industries where reliability, durability, and performance are critical.
With outstanding resistance to almost all chemicals and solvents, low coefficient of friction, and excellent electrical insulation properties, PTFE sheets provide unmatched solutions in demanding engineering and industrial applications. Their non-reactive and FDA-approved nature also makes them suitable for use in food, pharmaceutical, and medical equipment.
Whether used as gaskets, seals, liners, insulators, or sliding surfaces, PTFE sheets deliver consistent performance in extreme working conditions – from cryogenic to high-temperature environments.
PTFE Grade:
Virgin PTFE (Unfilled PTFE), Carbon Filled PTFE, Graphite Filled, Stainless Steel Filled, Bronze Filled PTFE, Glass-Filled PTFE (5% – 40%, Carbon-Filled PTFE (10% – 35%), Bronze-Filled PTFE (40% – 60%), Graphite-Filled PTFE, Molybdenum Disulfide (MoS₂) Filled PTFE, Conductive / Anti-Static PTFE, etc.

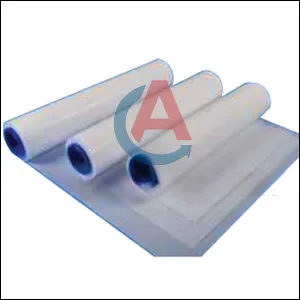

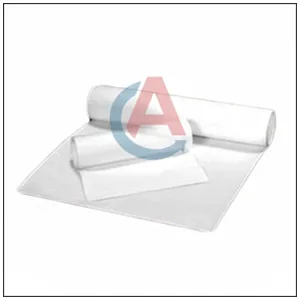

PTFE Sheets:
PTFE (Polytetrafluoroethylene) Sheets are one of the most versatile engineering plastics, known for their exceptional chemical resistance, low friction surface, thermal stability, and electrical insulation properties. These unique features make PTFE Sheets indispensable across multiple engineering applications.
Broad Usage in Engineering
- Sealing & Gaskets – Flange gaskets, washers, and seals in corrosive and high-pressure conditions.
- Bearings & Bushings – Self-lubricating and wear-resistant for rotating or sliding machine parts.
- Slide Ways & Wear Pads – Reduces friction and extends machine life in heavy-duty equipment.
- Electrical Insulation – Used in high-voltage insulation, dielectric components, and PCB supports.
- Lining & Cladding – Protects vessels, tanks, and pipelines against aggressive chemicals.
- Pump & Valve Components – Seats, diaphragms, and seals for long-lasting performance.
- Thermal Insulation – Performs reliably in applications demanding resistance to extreme heat.
Why Engineers Choose PTFE Sheets?
Because they deliver durability, non-stick performance, and reliability in critical applications where other plastics cannot survive.
Key Features
- Excellent Chemical Resistance – Inert to almost all industrial chemicals & solvents.
- Wide Temperature Range – Performs reliably from –200°C to +260°C.
- Low Coefficient of Friction – Extremely smooth, self-lubricating surface.
- Non-Stick Properties – Prevents adhesion of sticky or viscous substances.
- Outstanding Electrical Insulation – High dielectric strength, low loss factor.
- Weather & UV Resistant – Stable performance in outdoor and harsh environments.
- Non-Flammable – Very high resistance to ignition.
- Food-Grade Safe – Approved for use in pharma, food & beverage industries.
Benefits
- Longer service life in corrosive and high-temperature environments.
- Reduced maintenance cost due to wear resistance and self-lubrication.
- Ensures smooth, friction-free operation of moving machine parts.
- Safe for critical industries like pharma, food, chemical, electrical & aerospace.
- Reliable sealing and insulation where safety and durability are essential.
- Versatile – suitable for mechanical, thermal, and electrical engineering applications.
PTFE Sheets combine durability, reliability, and performance, making them the preferred choice for engineers and manufacturers worldwide.
Technical Properties (Typical Values)
| Property | Typical Value |
|---|---|
| Density | 2.10 – 2.20 g/cm³ |
| Tensile Strength | 20 – 30 MPa |
| Elongation at Break | 200 – 400 % |
| Compressive Strength | 15 – 20 MPa |
| Hardness (Shore D) | 50 – 60 |
| Coefficient of Friction | 0.05 – 0.10 |
| Service Temperature | –200 °C to +260 °C |
| Dielectric Strength | 60 – 100 kV/mm |
| Water Absorption | <0.01 % |
(Values are indicative and may vary depending on grade & size.)
Engineering Advantages of PTFE Rod & Bush
- Self-Lubricating: Eliminates need for external lubrication.
- Excellent Chemical Resistance: Suitable for aggressive media.
- Wide Temperature Range: Reliable in extreme hot & cold conditions.
- Electrical Insulation: High dielectric properties for electrical applications.
- Non-Stick Surface: Prevents material build-up and wear.
- Long Service Life: Reduced downtime and maintenance cost.
Key Features
- Corrosion-resistant and non-reactive
- Very low friction and wear-resistant
- Non-toxic & FDA compliant (Virgin PTFE)
- Excellent weather & UV stability
- Available in Virgin, Glass-filled, Carbon-filled, Bronze-filled grades
Available Thickness & Sizes
PTFE Rods
| Diameter | 6 mm to 300 mm (standard) |
| Length | 300 mm / 1000 mm (standard) |
| Custom sizes on request | |
PTFE Bushes
| Inner Diameter (ID) | 10 mm to 300 mm |
| Outer Diameter (OD) | 20 mm to 400 mm |
| Length (Height) | up to 300 mm |
| Customized bush sizes & machining available as per drawings | |
PTFE Tube – Available Sizes
| OD 2 mm x ID 1 mm x 100 meter | OD 4 mm x ID 2 mm x 100 meter |
| OD 6 mm x ID 4 mm x 100 meter | OD 8 mm x ID 6 mm x 100 meter |
| OD 10 mm x ID 8 mm x 100 meter | OD 12 mm x ID 10 mm x 100 meter |
(Also available as per customer requirement)
PTFE Rods & Bushes also Tube are the perfect solution for industries needing reliable, long-lasting, and high-performance materials for demanding engineering applications.
