Manufacturer, Supplier, Dealer, Distributor, Trader, Exporter, Importer Of PVC Sheets, PVC Strip Curtains, Flexible Transparent, PVC Strip, Soft PVC Sheet, Rigid PVC Sheet, PVC Flexible Sheet, Transparent PVC Sheet, PVC Solid Sheet.

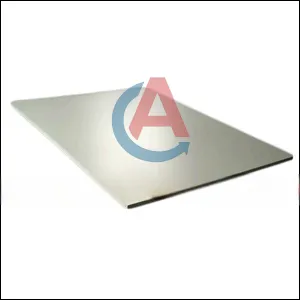

PVC (Polyvinyl Chloride) Sheets & Rods are among the most widely used engineering plastics due to their excellent balance of mechanical strength, chemical resistance, and cost-effectiveness. They are lightweight, durable, and easy to machine, making them suitable for a wide range of industrial applications. PVC is available in rigid as well as flexible grades, catering to different engineering requirements.
Broad Usage of PVC Sheet & Rod in Engineering:
- Chemical Industry – Storage tanks, pipe fittings, and chemical processing equipment
- Electrical Industry – Insulation plates, switchgear components, and cable supports
- Mechanical Engineering – Machine guards, wear strips, and structural parts
- Construction – Wall claddings, ducting, and panels
- Water Treatment & Ducting – Pump housings, valves, and fluid handling systems
- Laboratory Applications – Worktops, fume cupboard linings, and equipment housings
Engineering Advantages of PVC Sheet & Rod:
- High resistance to acids, alkalis, and most chemicals
- Excellent electrical insulation properties
- High mechanical strength and rigidity
- Easy to fabricate (cutting, machining, welding, bending)
- Flame retardant (self-extinguishing)
- Cost-effective compared to other engineering plastics
PVC Sheet & Rod – Technical Properties (Typical Values)
| Property | Typical Value |
|---|---|
| Density | ~1.38 g/cm³ |
| Tensile Strength | 45–55 MPa |
| Flexural Strength | 80–100 MPa |
| Impact Strength (Notched) | 3–6 kJ/m² |
| Hardness (Shore D) | ~80 |
| Water Absorption | <0.3% |
| Working Temperature | -10°C to +60°C (continuous use) |
| Thermal Conductivity | ~0.16 W/m·K |
(Values are typical and may vary by grade and manufacturer).
Key Features:
- Strong, rigid, and durable material
- Resistant to corrosion and chemicals
- Flame retardant (self-extinguishing nature)
- Excellent electrical insulation
- Easy to machine and fabricate
- Economical engineering plastic option
Available Thickness & Sizes:
| Property | Typical Value |
|---|---|
| PVC Sheets - Thickness | 2 mm to 50 mm |
| PVC Sheets - Standard Sizes |
1000 × 2000 mm 1220 × 2440 mm 1500 × 3000 mm (Custom cut sizes available on request) |
| PVC Rods - Diameter | 10 mm to 300 mm |
| PVC Rods - Length | Standard 1000 mm & 2000 mm |
Soft PVC Sheets Are Flexible Engineering Plastic (PVC - Polyvinyl Chloride) Sheet Products with Excellent Flexibility, Clarity, and Toughness. They Are Used In Applications Requiring Soft Touch, Good Chemical Resistance, And Thermal Insulation. These Sheets Are Available In Transparent And Colored Variants, Suitable For Protective Linings, Covers, Curtains, And Flexible Partitions.
Salient Features
- Flexible And Durable
- Chemical And UV Resistant
- Smooth And Transparent Surface
- Easy To Cut And Fabricate
- Non-Toxic And Safe For Enclosures
Applications
- Protective Equipment Covers
- Flexible Enclosures
- Soft Industrial Curtains
- Chemical Linings
- Packaging And Stationary Products

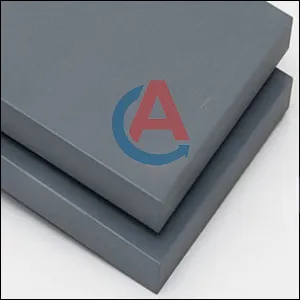

Rigid PVC Sheet:
Rigid PVC Sheets Are Strong, Hard Engineering Plastic (PVC - Polyvinyl Chloride) Sheets Designed For Structural And Fabrication Applications. These Sheets Offer High Mechanical Strength, Dimensional Stability, And Excellent Resistance To Chemicals And Weathering. Rigid PVC Sheets Are Flame Retardant, Lightweight, And Provide Long-Term Durability In Both Indoor And Outdoor Use.
Salient Features
- High Strength And Stiffness
- Excellent Chemical Resistance
- Flame Retardant
- UV And Weather Resistant
- Smooth Machinable Surface
Applications
- Construction And Sign Boards
- Chemical Tank Fabrication
- Wall Cladding And Partitions
- Cable Trays And Electrical Boards
- Outdoor Display Panels
Specifications:
| Applications | Use for Printing, packing & Vacuum forming Availabl |
| Sizes | 1000 mm to 2000 mm Available |
| Thickness | 1 mm to 40 mm |

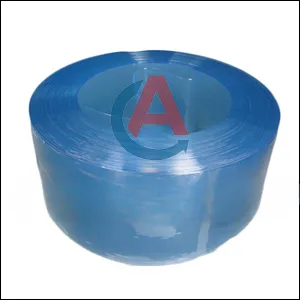

PVC Flexible Sheet:
We are offering our customers precisely designed the range of PVC Flexible Sheet. Apart from this, these sheets are offered at the reasonably price.
PVC Flexible Sheets Are Soft, Bendable Engineering Plastic (PVC - Polyvinyl Chloride) Sheets Designed For Applications Requiring Transparency, Flexibility, And Resistance To Environmental Stress. These Sheets Can Be Easily Welded Or Sewn Into Custom Shapes For Industrial Curtains, Covers, And Soft Enclosures. They Offer Excellent Tensile Strength And Are Resistant To Oil, Grease, And UV Light.
Salient Features
- Flexible And Weatherproof
- Transparent Or Colored Options
- Oil And Chemical Resistant
- Easy To Weld And Fabricate
- Durable And Long Lasting
Applications
- Soft Door Curtains
- Transparent Machine Covers
- Tent And Awning Panels
- Protective Barriers
- Cleanroom Enclosures
Product Details:
| Color | Black, White, Red, Transparent |
| Material | Acrylic, Plastic, PVC |
| Pattern | Plain |
| Thickness | 2-3 mm, 3-4 mm, 4-5 mm, >5 mm |
Technical Specification:
| Thickness Standard | 1mm upto 6mm (Standard) |
| Size Standard | Available in 1200 mm width and 10 Meter length (Standard). |
| Colors | Colors available clear blue and yellow |
| Material | Virgin PVC Material |

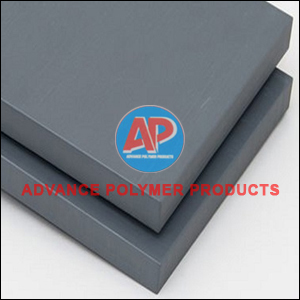

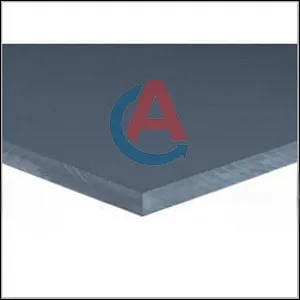

PVC Rigid Sheet :
Product Details:
| Color | White, Black, Green |
| Features | UV Protected, Fire Retardant, Sound Insulated, Moisture Resistant |
| Material | PVC |
| Pattern | Plain |
| Thickness | 1-2 mm, 2-3 mm, 3-4 mm, 4-5 mm, >5 mm |
| Thickness(mm) | 2 to 3, 1 to 2, 4 to 5, 3 to 4 |
Extruded PVC sheet has normal impact and high corrosion resistance and comes in a dark gray color. Press laminated PVC sheet offers normal impact and high corrosion resistance and is available in thick gauges. It comes in a dark gray color. Other sizes are available on special quotation. Sold in standard sheets only, the thick gauges come one sheet per case.
| Thickness | Sheets are available from 2mm to 30mm. |
| Dimension | 8' X 4' size is widely available, Other sizes are available as per order. |
| Properties & Advantages | Eco friendly Water Proof Termite & Borer ProofFire Retardant Non Toxic-Lead and Cadmium Free 100% Recyclable Strong and Durable Light Weight Rot Free U V Resistant Best replacement of plywood Having good screw holding capacity |
Additional Information:
| Pay Mode Terms | T / T (Bank Transfer) |
| Delivery Time | Immediate |

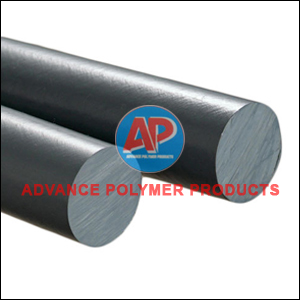

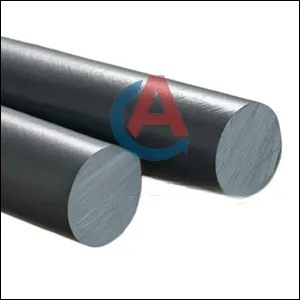

PVC Rods :
Features:
- Accurate dimension
- Long life
- User friendly
- Light weight
- Corrosion resistance
- Fine finish
Other Details:
High resistant to chemicals Excellent welding gluing Molding properties Chemically non-reactive Easily machined heat formed Welded Solvent Cemented Good impact Low cost High compressive strength Temperature Resistant: 700C.
Specifications:
| Available Shapes Sizes | Rigid Rods Dia 6 To 115 mm |
| Length | 1000 mm |
| Flexible Sheet Thickness | 1-5 mm |
| Width & length | 1.22 x 10 mtrs. |
| Rigid Sheet Thickness | 1 To 30 mm |
| Width & length | 1.22 x 2 mtrs.4'x8' |

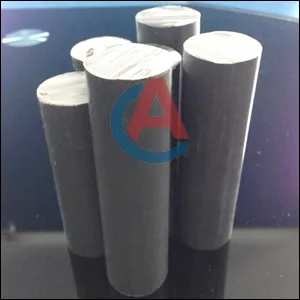

Polyvinyl Chloride Rods :
Other Details:
Properties of polyvinyl chloride:
High resistant to chemicalsExcellent welding gluing Molding properties Chemically non-reactive Easily machined heat formed Welded Solvent Cemented Good impact Low cost High compressive strength.

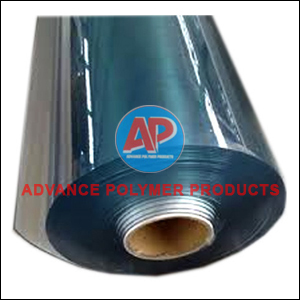

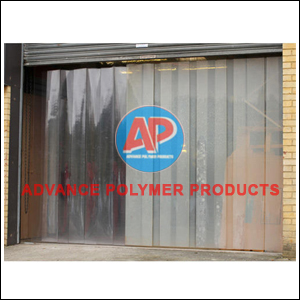

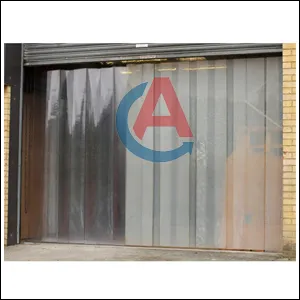

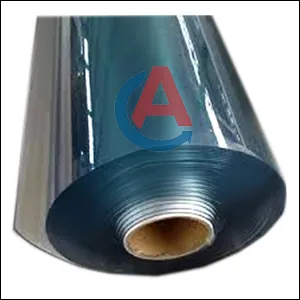

PVC Flexible Transparent:
PVC Flexible Transparent sheets and rolls are versatile, lightweight, and highly durable materials widely used in industrial, commercial, and domestic applications. Made from premium-grade Polyvinyl Chloride (PVC), these sheets combine flexibility with excellent transparency, making them suitable for protective covers, enclosures, partitions, and engineering solutions.
Broad Usage of PVC Flexible Transparent in Engineering
- Industrial Curtains & Partitions – Used in factories, warehouses, and cold storage rooms.
- Protective Covers – Machinery guards, safety barriers, and packaging.
- Chemical & Pharma Industry – Resistant to chemicals, suitable for cleanroom partitions.
- Conveyor Systems – As sliding surfaces or guide strips.
- Food & Dairy Industry – Non-toxic grades used for hygienic applications.
- Electrical & Electronics – Insulation and protective layering.
- Printing & Packaging – For lamination, surface protection, and display.
- Automobile & Transport – Seat covers, protective sheets, and interior lining.
Broad Usage of PVC Flexible Transparent in Engineering
- High flexibility and easy formability.
- Good resistance to acids, alkalis, and oils.
- High clarity and transparency for visibility.
- Durable, long-lasting, and lightweight.
- Good weather resistance and water resistance.
- Flame-retardant and self-extinguishing properties (special grades).
- Cost-effective compared to other engineering plastics.
PVC Flexible Transparent – Technical Properties (Typical Values)
| Property | Typical Value |
|---|---|
| Density | ~1.30 – 1.35 g/cm³ |
| Hardness (Shore A/D) | 70 – 90 |
| Tensile Strength | 12 – 20 MPa |
| Elongation at Break | 200 – 350% |
| Service Temperature Range | -10°C to +60°C (continuous) |
| Transparency | > 85% light transmission |
| Chemical Resistance | Good (acids, alkalis, oils) |
Key Features
- Excellent clarity & transparency
- Flexible and easy to fabricate
- UV stabilized grades available
- Chemical and moisture resistant
- Non-toxic food-grade options available
- Cost-effective and multipurpose material
Available Thickness & Sizes
| Property | Typical Value |
|---|---|
| Thickness Range | 0.2 mm to 10 mm |
| Standard Widths | 1000 mm, 1200 mm, 1500 mm (custom on request) |
| Forms Available | Sheets, Rolls, Strips, Curtains |
| Colors | Transparent (Clear), Transparent Blue, Transparent Grey (other colors on request) |

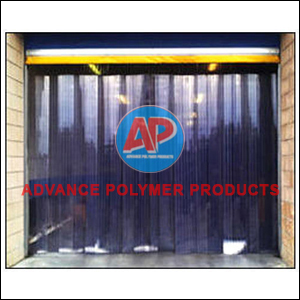

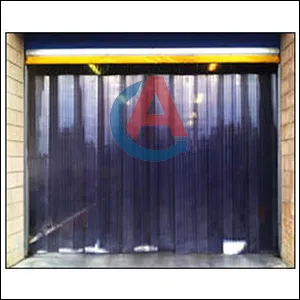

PVC Strip Curtains are Flexible Engineering Plastic (PVC - Polyvinyl Chloride) Curtain Products Designed for Industrial Entryways, Warehouses, and Cold Storage Facilities. These Curtains Provide Effective Dust, Noise, and Temperature Control While Allowing Visibility and Easy Passage. Available in Clear and Colored Options, PVC Strip Curtains are UV Resistant, Anti-Static, and Durable for Long-Term Usage in Harsh Conditions.
Salient Features
- Flexible and Transparent
- Reduces Heat, Dust, and Noise Transfer
- Easy Installation and Replacement
- UV Resistant and Anti-Static
- Energy Efficient and Hygienic
Applications
- Cold Storage and Freezers
- Warehouse Entryways
- Loading Docks
- Industrial Workstations
- Clean Rooms

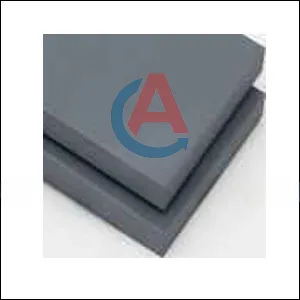

PVC Flexible, Rigid :
- Round, Welding Rods
- Rigid Rods, Sheet
- Flexible Sheets in Yellow
- Translucent Clear Transparent & Gray, Red, Black, Blue Colours etc.
Whether you're in need of custom polymer molding or advanced rubber solutions, we offer top-quality, reliable products tailored for your industry.
